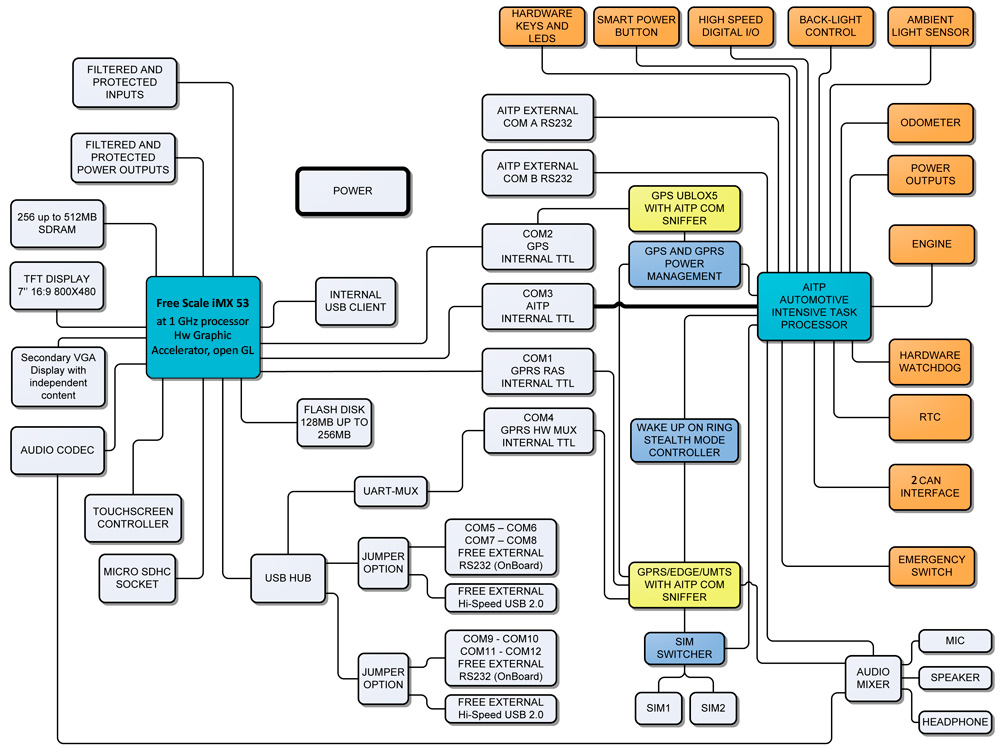

The Primary CPU is a Freescale ARM CORTEX A8 iMX 53, 1 GHz processor with Hardware Graphic accelerator, OpenGL Hardware for 3D navigation and the ARM architecture allows this Device to supply a remarkable flexibility and efficiency in computing power, together with reduced power consumption.
Secondary CPU AITP (Automotive Intensive Task Processor) supplies the necessary functionalities in the automotive field, like power management, Safe Shutdown, Wheel Pulses Odometer, Distance and Speed calculation, Wake-Up on Ring, Over-the-Air services for software and firmware updates.
The AITP is OTA programmable for remote automatic firmware upgrade, and is always powered ON; it can turn-ON and OFF the Device and all its peripherals.
IDEAL FOR FLEET MANAGEMENT AND JOB DISPATCHING
The Device represents the state-of-the-art device for job dispatching and fleets management, an ALL-IN-ONE powerful and compact solution.
Its HSUPA modem allows very reliable communication with operating headquarters. The vehicle is located by the high performance GPS U-Blox 6 receiver with 50 channels, and compatible with the European positioning system GALILEO.
Both GPS and Modem modules can be powered ON and OFF regardless of Windows CE status.
An Hardware MUX Port is available which allows to send AT commands to the modem while the device is connected in Internet, for example to request connection status, signal diagnostic and modem statistics.
CUSTOMIZABLE USER INTERFACE

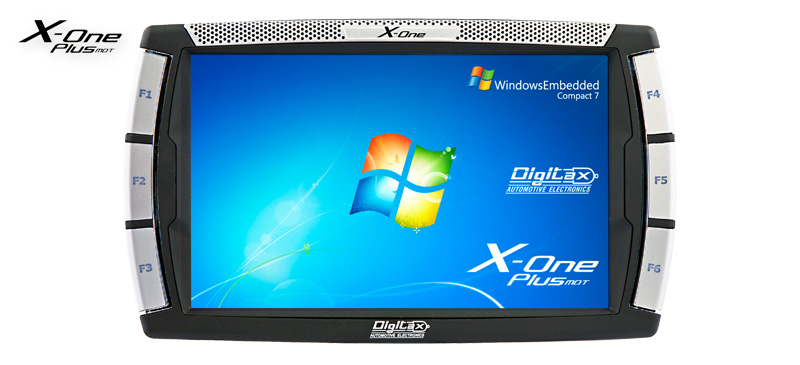

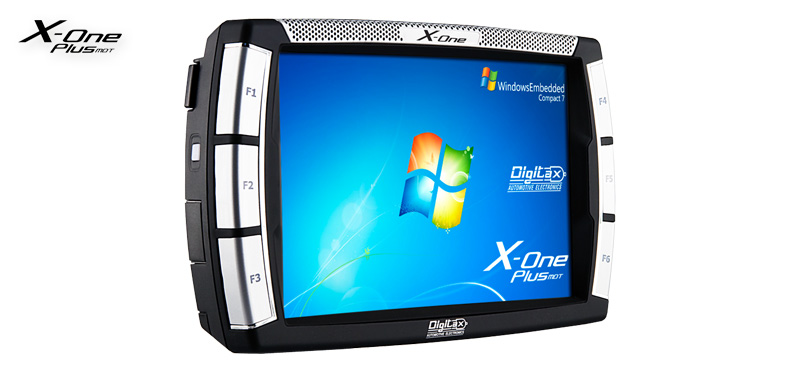

The 7 inches 16:9 clear readable TFT Displays with 800x480 resolution allow to develop versatile and high accessible applications, thanks also to the integrated TouchScreen controller, and to the 6 keys with LEDs available.
Hardware Keys avoid consumption and damage of Touch Screen for heavily used operations.
The ambient light sensor allows to choose an optimal brightness of the display in any environmental light.
The power key is a Smart Power Button, completely programmable and used to perform several important tasks such as:
Can be also disabled or programmed to trigger Ghost Mode (fake shutdown).
DOUBLE BOOT FEATURE
Through this powerful functionality is possible to restore and to update the entire system anytime, starting from user application up to the complete operating system and all the CPU firmwares.
The system is able to boot from two different microSDHC, used for large data storage (large maps, images, movies, logs) and for service (system initialization or restore).
Stealth mode is a special operating mode in which the system is working but the display is OFF. This feature can be useful in several situations:
The Device can withstand glitches at car start, or power loss problems thanks to the external UPS Battery system, that is automatically recharged.
The AITP processor gives time to user applications and Windows to close gracefully and safely in case of sudden disconnection of the Main Power.
INPUTS AND OUTPUTS

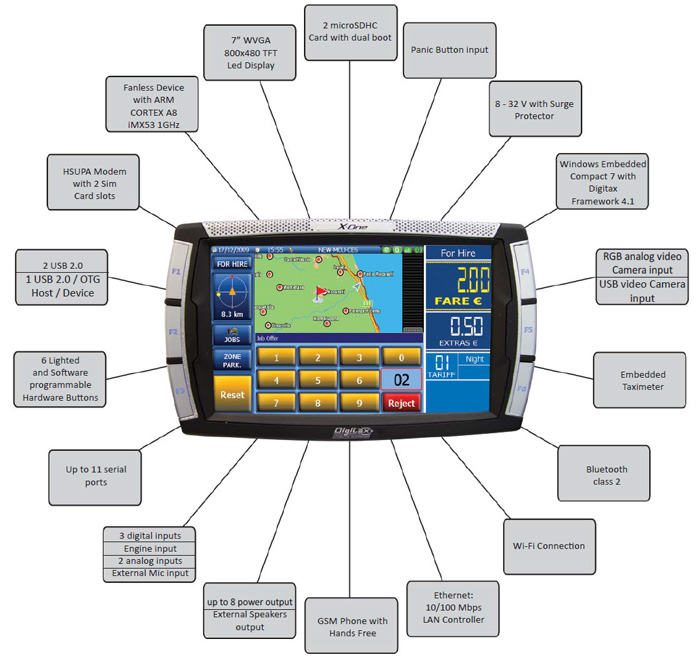

The Device supplies a wide range of communication channels with the external environment: two Hi-Speed USB 2.0 Host, one USB OTG / Device and up to 7 Serial Ports.
The special programmable digital inputs and outputs allow to control devices and read signals coming from generic external equipments.

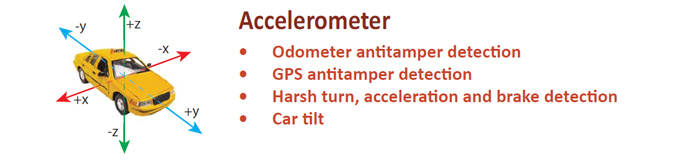

Embedded 3-axis accelerometer.
The X-One Plus include a RGB analog video Camera input, with Infra Red power management.
RAPID APPLICATION DEVELOPMENT
Microsoft Windows CE .NET Operative System and Compact Framework 3.5 combined with the completeallow the developers to create their applications and their services with the maximum simplicity and in very reduced time.
A rich set of Sample Source Code is provided, along with extensive support from Digitax Automotive highly trained Staff.
