M1 Mirror Taxi meter
Electronic Mirror Taximeter, printer capable, 64 fully independent and smart tariffs automatically managed by the time, date, distance, fare amount; self-powered clock/calendar, 45 counters for driver's and owner's accountancy, fully programmable, memory.
Digitax M1 Mirror Taximeter is the first taximeter obtaining the european MID certification by NMI.
| Dimension (WxHxD mm) | 28 x 8,5 x 2,5 |
| Weight | Gr. 350 ca. |
| Displays | Fare counter: - 6 Digits Red High-Luminosity Led Extra counter: - 5 Digits Red High-Luminosity Led Illuminated Front Text 1 Digit tariff index |
| Power Supply | From 8,5 to 16 Volts |
| Temperature | From -15 to 70 °C. |
| Relative Humidity | 95% |
| Mechanical Strenght | 3 g |
| Distance Unit | From 10 cm. to 6553 meters Step 10 cm. |
| Totalizator Mode | Dataflash 1Mb - 45 + 45 Statistic Memory - 12 x 45 Monthly Statistic - 50 x 45 Statistics for each Driver |
| Tariff Structure | 63 Smart and fully indipendent Tariffs +8 Night Tariffs +8 Holiday Tariffs +4 Autofare Tariffs +4 Autidistance Tariffs |
| Tariff Choice | Manual Radio Automatic at pre-programmed: - Distance(s) - Time(s) - Date(s) - Fare(s) - Amount(s) |
| Tariff Program Change | - Manual by Key - Via Radio - By Programmer - By Chip Card - By Infrared Programmervia software |

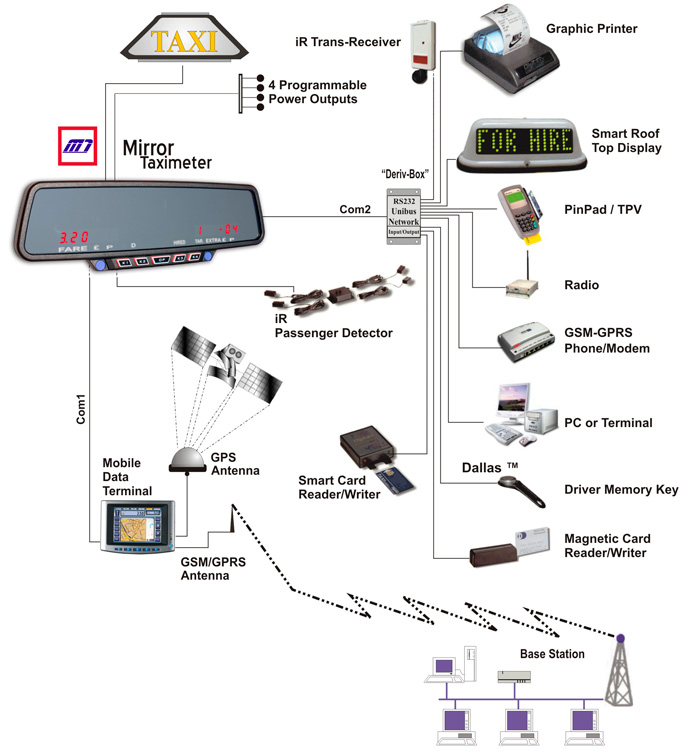

| Peripheral Connections | - Printer - Magnetic Card Reader - Chip Card Reader/Writer - Infrared Passenger Sensor - Mobile Data Terminal - Modem - Cellular Phone |
| Communications Ports | Internal COM1 and COM2 RS232 +/- 12 Volts STD 4 Input/Output TTL level |
| Communications Protocols | - GMSI - Mobilstar - RomaNet - Telecom It. (Upgradable) |
| Operative Firmware | Upgradable firmware on Flash |
| Transducer | Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km |
| Power Outputs | 1 Roof Light 25 Watts 4 Programmable power outputs 5 Watts |
