F3 Plus Taximeter

Low cost electronic taximeter integrated with a thermal printer, 32 fully independent and smart tariffs automatically managed by the time, date, distance, fare amount; self-powered clock/calendar, independent EXTRAS, 7 counters for accountancy, fully prog.

Specifications
Dimension (WxHxD mm) 18,5 x 6,2 x 2,5
Weight Gr. 350 ca.
Displays Fare counter:
- 6 Digits Red High-Luminosity Led
Extra counter:
- 5 Digits Red High-Luminosity Led
Tariff counter:
- 1 Digit tariff index
Illuminated Front Text
Power Supply From 8,5 to 16 Volts
Temperature From -15 to 70 C.
Relative Humidity 95%
Mechanical Strenght 3 g
Distance Unit From 10 cm. to 6553 meters
Step 10 cm.
Waiting Time Unit From 0,1 sec. to 6553
Step 0,1 sec.
Totalizator Mode Dataflash 1Mb
- 45 + 45 Statistic Memory
- 12 x 45 Monthly Statistic
- 50 x 45 Statistics for each Driver
Tariff Structure 63 Smart and fully indipendent Tariffs
+8 Night Tariffs
+8 Holiday Tariffs
+4 Autofare Tariffs
+4 Autidistance Tariffs
Tariff Choice Manual
Radio
Automatic at pre-programmed:
- Distance(s)
- Time(s)
- Date(s)
- Fare(s)
- Amount(s)
Tariff Program Change Manual by Key
Via Radio
By Programmer
By Chip Card
By Infrared Programmer

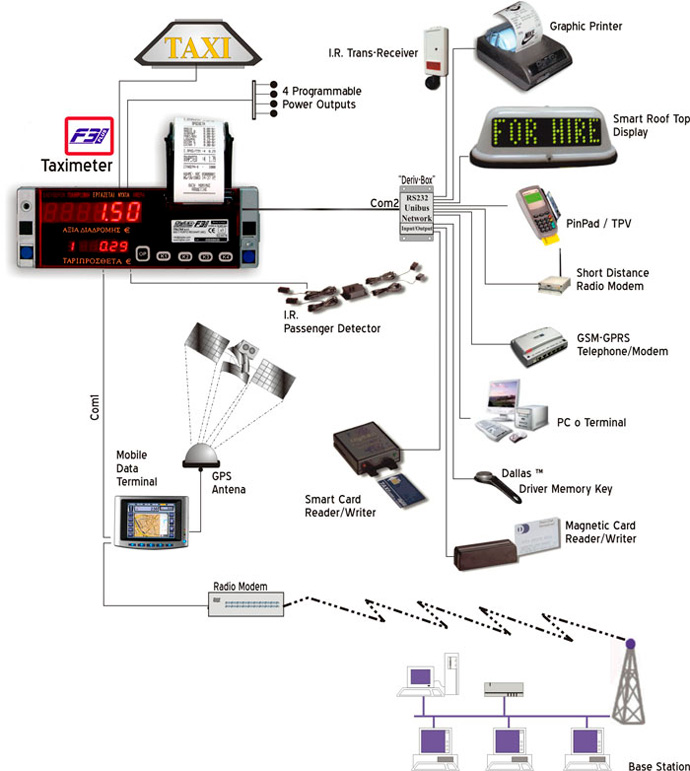

Peripheral Connections - Printer
- Magnetic Card Reader
- Chip Card Reader/Writer
- Infrared Passenger Sensor
- Mobile Data Terminal
- Modem
- Cellular Phone
Communications Ports - Internal COM1 and COM2 RS232 +/- 12 Volts STD
- 4 Input/Output TTL level
Communications Protocols GMSI
Mobilstar
RomaNet
Telecom It. (Upgradable)
Operative Firmware Upgradable firmware on Flash
Transducer Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km
Power Outputs 1 Roof Light 25 Watts
4 Programmable power outputs 5 Watts
