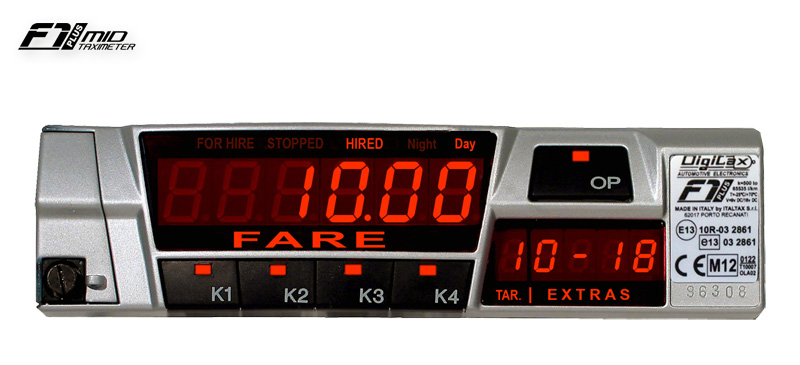

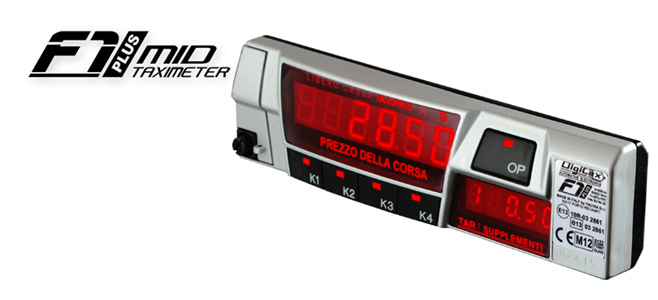

F1 Plus Taximeter

Electronic taximeter, printer capable

MID Certified

MID 2004/22/EC Directive

High brightness LEDs

Fare counter: 6 Digits Red high brightness Leds
Extra counter: 5 Digits Red high brightness Leds
Illuminated Front Text 1 Digit tariff index

F1 Plus Taximeter

Electronic taximeter, printer capable, 64 fully independent and smart tariffs automatically managed by the time, date, distance, fare amount; self-powered clock/calendar, 45 counters for driver's and owner's accountancy, fully programmable, memory buffer

Specifications
Dimension (WxHxD mm)	17 x 4,5 x 2,5
Weight	Gr. 350 ca.
Displays	Fare counter: - 6 Digits Red High-Luminosity Led Extra counter: - 5 Digits Red High-Luminosity Led Illuminated Front Text 1 Digit tariff index
Power Supply	From 8,5 to 16 Volts
Temperature	From -15 to 70 °C.
Relative Humidity	95%
Mechanical Strenght	3 g
Distance Unit	From 10 cm. to 6553 meters Step 10 cm.
Waiting Time Unit	From 0,1 sec. to 6553 Step 0,1 sec.
Totalizator Mode	Dataflash 1Mb - 45 + 45 Statistic Memory - 12 x 45 Monthly Statistic - 50 x 45 Statistics for each Driver
Tariff Structure	63 Smart and fully indipendent Tariffs +8 Night Tariffs +8 Holiday Tariffs +4 Autofare Tariffs +4 Autidistance Tariffs
Tariff Choice	Manual Radio Automatic at pre-programmed: - Distance(s) - Time(s) - Date(s) - Fare(s) - Amount(s)
Tariff Program Change	Manual by Key Via Radio By Programmer By Chip Card By Infrared Programmer

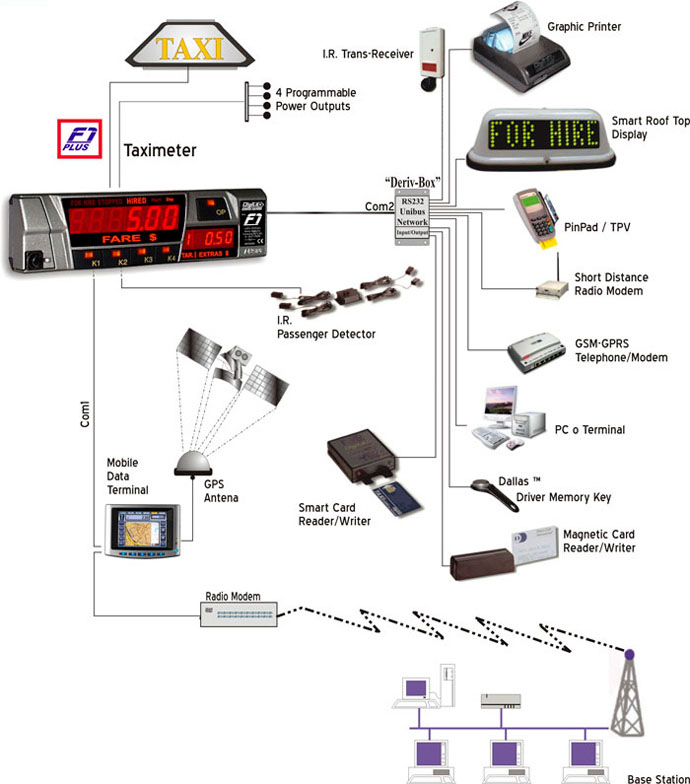

Peripheral Connections	- Printer - Magnetic Card Reader - Chip Card Reader/Writer - Infrared Passenger Sensor - Mobile Data Terminal - Modem - Cellular Phone
Communications Ports	- Internal COM1 and COM2 RS232 +/- 12 Volts STD Baud Rate from 300 to 15200 Baud - 4 Input / Output TTL level
Communications Protocols	GMSI Mobilstar RomaNet Telecom It. (Upgradable)
Operative Firmware	Upgradable firmware on Flash
Transducer	Mechanical Hall Effect or Internal adapter for electronic speedometer up to 100.000 l/km
Power Outputs	1 Roof Light 25 Watts 4 Programmable power outputs 5 Watts
